SB, SBI and SBN vertical multistage centrifugal pumps are powered by standard electric motor.

The motor output shaft directly connects with the pump shaft through a coupling. The pump unit consists of optimized hydraulics, various types of connections, an outer sleeve, a pump head, pump base, four stay-bolts and various other parts. The pump base has suction and discharge ports on the same level (in-line). This in-line design provides a more compact design and easier installation. All pumps are equipped with a mechanical shaft seal of the detachable cartridge type. SB, SBI and SBN pumps are available with various stages and capacities to provide customers a choice of models for many applications.


Operating Limits
  • 50Hz
    • Capacity : max. 90 m3/h
    • Head : max. 325 m
    • Liquid temperature : -15°C to +120°C
  • 60Hz
    • Capacity max.108 m3/h
    • Head : max. 270 m
    • Liquid temperature : -15°C to +120°C


  • Industrial washing equipment
  • Heat recovery
  • Pressure boosting
  • Filtration equipment
  • General industry
  • Auxiliary equipment
  • Irrigation
  • Water treatment
  • H.V.A.C
  • Cooling and chiller
  • Aggressive liquids
  • Fire-fighting equipment
  • Reverse osmosis
  • Swimming pools


SB, SBI, SBN Series Vertical Multistage Centrifugal In-line Pumps 50Hz - 0001
SB,SBI,SBN Series 50Hz
SB,SBI,SBN Series 60Hz

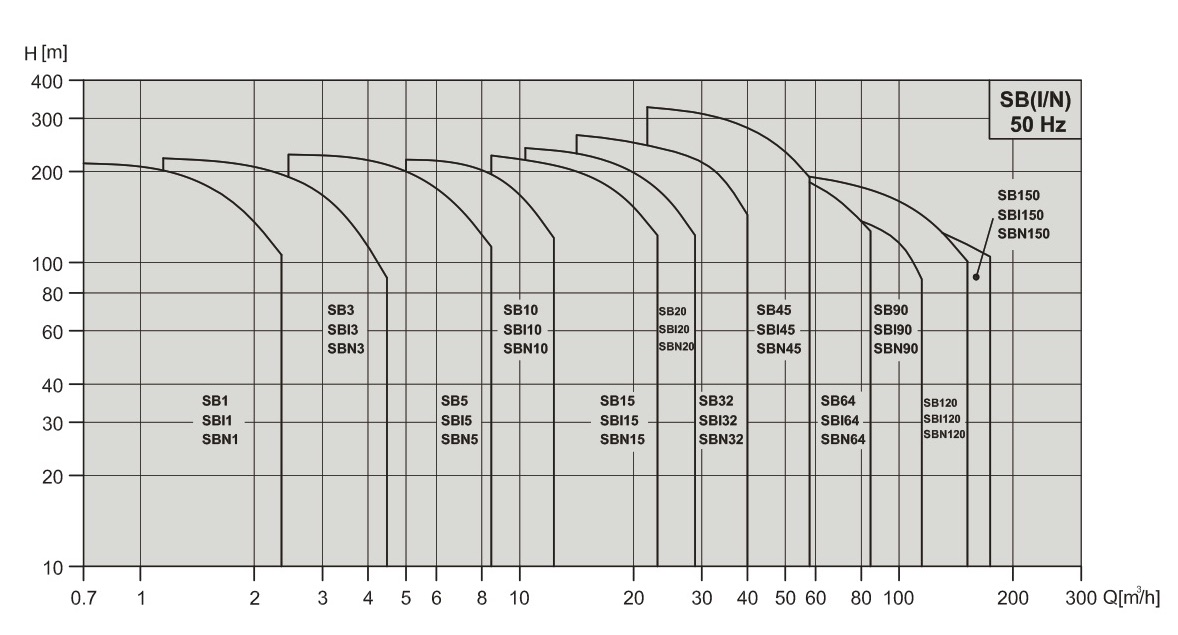

Performance Range
